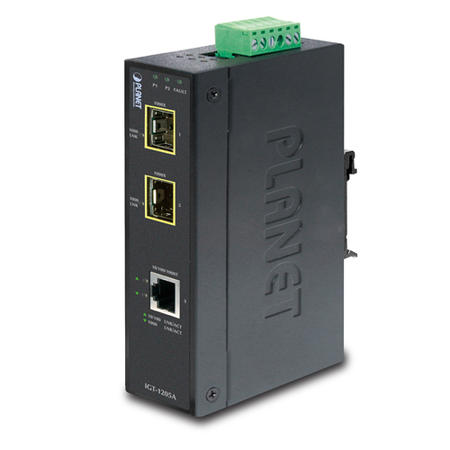

Planet PL-IGT-1205At 10/100/1000T 2 Port 1000Basesx/Lx/Bx Media Converter

Ürün Açıklaması

Physical Port1-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configuredFiber Port RedundancyLink status auto-detect and redundant on dual ports with the same connector typeOnly Primary-Port is active at a time, the Backup-Port is blockedWhen Primary-Port link failure occurs, the traffic will swap to Backup-Port automaticallyOnce the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-PortLayer 2 FeaturesSupports auto negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modeHigh performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthPrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)9K Jumbo Frame Size supportIntegrated address look-up engine, support 1K absolute MAC addressesAutomatic address learning and address agingIndustrial Case / Installation- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableSlim IP30 metal case protectionDIN rail and wall mount designRedundant Power DesignSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 degrees C operating temperature Hardware SpecificationsCopper Port1 x 10/100/1000Base-T RJ-45 TPAuto-MDI/MDI-X, Auto-NegotiationSFP / mini-GBIC Slots2 1000Base-SX/LX/BX SFP interfaces (Port-1 and Port-2)Compatible with 100Base-FX SFPDIP SwitchDIP-1: SFP Port 1 1000Base-X (default) / 100Base-FXDIP-2: SFP Port 2 1000Base-X (default)/ 100Base-FXDIP-3: Switch mode / Fiber Redundant modeConnectorRemovable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failureAlarm Relay current carry ability: 1A @ DC 24VLED3 x LED for System and Power:　■ Green: DC Power 1　■ Green: DC Power 2　■ Green: P...
