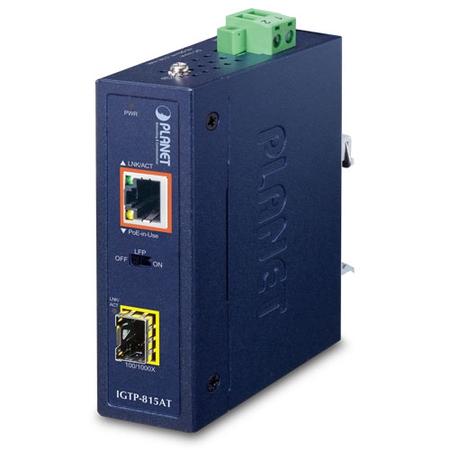

Planet PL-IGTP-815AT 100/1000Base-X to 10/100/1000Base-T PoE+ Endüstriyel PoE+ Media Converter

Ürün Açıklaması

Planet PL-IGTP-815AT 100/1000Base-X to 10/100/1000Base-T PoE+ Endüstriyel PoE+ Media ConverterHardware SpecificationsCopper Port10/100/1000BASE-T Ethernet TP interface. Maximum 100m distanceAuto-negotiation, auto MDI/MDI-X with PoE injector functionSFP Slot1000BASE-SX/LX/BX SFP interfaceCompatible with 100BASE-FX SFPFlow ControlBack pressure for half duplex modeIEEE 802.3x pause frame for full duplex modeMaximum Frame Size9KLEDSystem: Power (Green)Fiber 100/1000BASE-X: LNK/ACT (Green)TP 10/100/1000BASE-T: LNK/ACT (Green)PoE: Power-in-use (Amber)Dimensions (W x D x H)30 x 70 x 104 mmWeight231gPower RequirementsDC 48~56V, supports reverse polarity protection(>51V DC for PoE+ output recommended)Power ConsumptionSystem ON without loadingDC 48V: 0.96W/3.27BTUDC 56V: 1.12W/3.82BTUFull loading with PoEDC 48V:35W/119BTU(PoE:30W)DC 56V:42W/143BTU(PoE: 36W)DIP SwitchOff: LFP (Link Fault Passthrough) disableOn: LFP (Link Fault Passthrough) enableFEF (Far End Fault) works with LFP to prevent data lossThe DIP switch is turned off by defaultEnclosureIP30 metal caseInstallationDIN-rail kit and wall-mount earESD Protection6KV DCCables10/100/1000BASE-T:?2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)?EIA / TIA-568 100-ohm STP (maximum 100 meters)100BASE-FX/1000BASE-SX/LX:?Multi-mode: 50/125μm or 62.5/125μm optical fiber?Single-mode: 9/125μm optical fiberPower Over EthernetPoE StandardIEEE 802.3at Power over Ethernet PlusPoE Power Output48~56V DC: 36 watts max.PoE Power Supply TypeEnd-spanPower Pin Assignment1/2(+), 3/6(-)PoE Power Budget36 wattsStandards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEProtocols and Standards ComplianceIEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3z Gigabit Ethernet over Fiber OpticIEEE 802.3x Flow ControlIEEE 802.3af Power over EthernetIEEE 802.3at Power over Ethernet PlusIEEE 802.3az Energy Efficient Ethernet (EEE)Stability TestingIEC60068-2-32 (free fall)IEC60068-2-27 (shock)IEC60068-2-6 (vibration)E...
