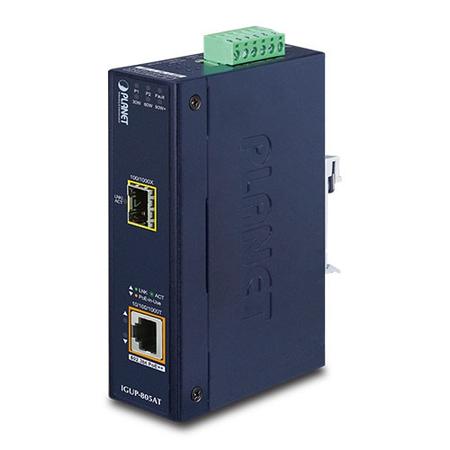

Planet PL-IGUP-805AT 1 Port 10/100X SFP 1 Port 10/100/1000T Poe++ Converter

Ürün Açıklaması

Industrial 1-Port 100/1000X SFP to 1-Port 10/100/1000T 802.3bt PoE++ Media Converter Hardware SpecificationsCopper PortOne 10/100/1000BASE-T portSFP SlotOne 1000BASE-SX/LX/BX SFP interfaceCompatible with 100BASE-FX SFPFlow ControlBack pressure for half duplex modeIEEE 802.3x pause frame for full duplex modeMaximum Frame Size9KLED IndicatorsSystem:Power 1 (Green), Power 2 (Green), Fault Alarm (Red)PoE Usage:IGUP-805AT: 30W/60W/90W+ (Amber)Fiber:100/1000BASE-X: LINK/ACT (Green)TP:10/100/1000BASE-T: LNK/ACT (Green)PoE: PoE-in-Use (Amber)Dimensions (W x D x H)32 x 87 x 135 mmWeight484 gPower Requirements12-56V DC, supports reverse polarity protectionPower ConsumptionSystem ON without loading12V DC: 4.44W48V DC: 3.36WFull loading with PoE12V DC: 82W48V DC: 98WDIP Switch 1LFPP On/OffDIP Switch 2Legacy mode On (POH)/Legacy mode Off (BT)EnclosureIP30 metal caseInstallationDIN-rail kit and wall-mount earESD Protection6KV DCCables10/100/1000BASE-T:2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)EIA/TIA-568 100-ohm STP (maximum 100 meters)100BASE-FX/1000BASE-SX/LX:Multi-mode: 50/125μm or 62.5/125μm optical fiberSingle-mode: 9/125μm optical fiberPower Over EthernetPoE StandardIEEE 802.3bt Power over Ethernet Plus PlusPoE Power OutputStandard (BT) mode: 90WLegacy (POH) mode: 95WPoE Power Supply TypeEnd-span + Mid-spanPower Pin AssignmentPair 1 End-span: 1/2 (-), 3/6 (+)Pair 2 Mid-span: 4/5 (+), 7/8 (-)PoE Power Budget95 watts@24-56V DC input60 watts@12V DC inputPoE ModeStandard: To provide power to the PD devices that follow the IEEE 802.3at/bt standard.Legacy: To provide power to the PD devices that do not fully follow the IEEE 802.3af/at/bt standard. Besides, the Legacy mode supports PoH and Ultra PoE.Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEProtocols and Standards ComplianceIEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3z Gigabit Ethernet over Fiber OpticIEEE 802.3x Flow ControlIEEE 802.3af Power over EthernetIEEE...
