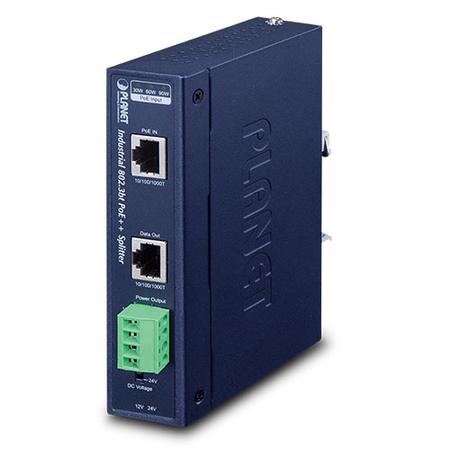

Planet PL-IPOE-173S 1 Port 10/100/1000 Mbps Endüstriyel PoE++ Splitter

Ürün Açıklaması

Planet PL-IPOE-173S 1 Port 10/100/1000 Mbps Endüstriyel PoE++ Splitter Hardware SpecificationsInterfacePoE Input Port1 10/100/1000 BASE-T RJ45Data Output Port1 10/100/1000 BASE-T RJ45DC Out Plug Connector1 removable 4-pin terminal blockDIP Switch12V/24V DC outputLED IndicatorsPoE Input:30W (Green)60W (Green)90W (Green)DC Voltage:12V (Amber)24V (Green)Data Rate10/100/1000MbpsDimensions (W x D x H)32 x 87.8 x 135 mmWeight445gInstallationDIN-rail/wall mountableESD Protection4KVEFT Protection4KVEnclosureIP30 metal casePower Requirements4-pair 802.3at PoE+ and 802.3bt PoE++PoE DC 48 ~ 56VPower ConsumptionSystem on with PoE input5.4 wattsFull loading with maximum12V DC, 5.8A output81.6 wattsPower Output802.3 bt type 3 PoE++ input12V DC, 4.5A (max.)24V DC, 2.2A (max.)802.3 bt type 4 PoE++ input12V DC, 5.8A (max.)24V DC, 2.9A (max.)Network Cable802.3 bt PoE++ input(60W+)4-pair UTP Cat. 5e, 6, up to 100m (328ft)802.3at PoE+ input(30W)2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft)Power over EthernetPoE Standard802.3 bt PoE++4-pair 802.3at PoE+Power OutputDC 12V/24V by DIP switch controlPoE Power Supply TypeEnd-span + Mid-spanEnd-spanMid-spanPower Pin Assignment1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)Standards ConformanceStandards ComplianceIEEE 802.3 10BASE-T EthernetIEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3ab 1000BASE-T Gigabit EthernetIEEE 802.3at Power over Ethernet PlusIEEE 802.3bt 4-pair Power over Ethernet Type 4Regulatory ComplianceFCC Part 15 Class A, CEEnvironmentOperating Temperature-40~ 75 degrees CStorage Temperature-40~ 85 degrees CHumidity5 ~ 95% (non-condensing)Standard AccessoriesPackage ContentsIPOE-173S x 1User’s manual x 1Wall-mount kit x 1RJ45 dust cap x 2
