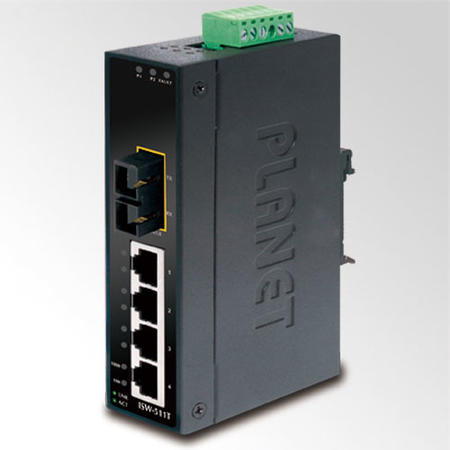

Planet PL-ISW-511TS15 4 Port 10/100/Base-Tx 1 Port 100Base-FX SFP Endüstriyel Ethernet Switch

Ürün Açıklaması

Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch)4-Port 10/100Base-TX1-Port 100Base-FX Single-mode SC 15 kmIP30, -40~75 Derece C Physical Port4-Port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-511T series1-Port 100Base-FX interface on ISW-511T for up to 2km (Multimode fiber 62.5/125μm, 50/125µm) transmission distance1-Port 100Base-FX interface on ISW-511TS15 for up to 15km(Single-mode fiber 9/125µm) transmission distance Layer 2 FeaturesComplies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standardSupports Auto-Negotiation and 10/100Mbps half / full duplex mode for each copper portHigh performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packetsto optimize the network bandwidthPrevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)Backplane (Switching Fabric): 1GbpsIntegrated address look-up engine, supports 2K absolute MAC addresses1Mbit on-chip frame bufferAutomatic address learning and address agingCSMA/CD ProtocolIndustrial Case / InstallationIP-30 Metal case / ProtectionDIN Rail and Wall Mount Design12 to 48V DC, redundant power with polarity reverse protection and connective removable terminal block for master and slave powerSupports EFT protection 6KV DC for power lineSupports 6KV DC Ethernet ESD protection-40 to 75 Degree C wide operating temperature Hardware SpecificationsCopperPorts4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-XCable10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)OpticalPort1 x 100Base-FXCableISW-511T: 50/125μm / 62.5/125μm fiber ISW-511TS15: 9/125μm fiber ModeISW-511T: Multi-modeISW-511TS15: Single-modeDistanceISW-511T: 2kmISW-511TS15: 15kmFrequencyISW-511T: 1310nmISW-511TS15: 1310nmLaunch Power ISW-511T: Max. -14dBm, Min. -20dBmISW-511TS15: Max. 0dBm, Min. -20dBmReceive SensitivityISW-511T: -32dB...
