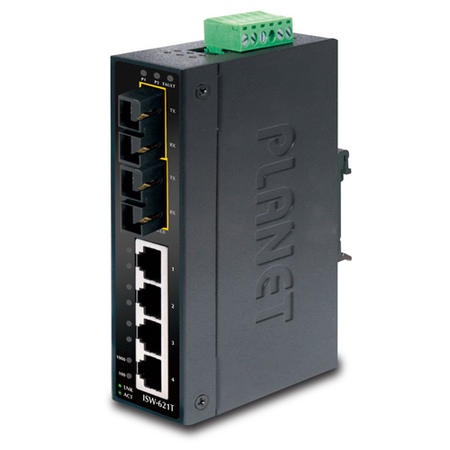

Planet PL-ISW-621T 4 Port 10/100/Base-Tx 2 Port SFP SC Endüstriyel Ethernet Switch

Ürün Açıklaması

Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch)4-Port 10/100Base-TX 2-Port 100Base-FX Multi-mode SC 2 kmIP30, 40~75 Derece C Physical Port• 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series• 2-port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance• 2-port 100Base-FX interface on ISW-621TS15 for up to 15km (single-mode fiber 9/125µm) transmission distanceLayer 2 Features• Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard• Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port• High performance Store and Forward architecture• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)• Backplane (Switching Fabric): 1.2Gbps• Integrated address look-up engine, supporting 2K absolute MAC addresses• 1Mbit on-chip frame buffer• Automatic address learning and address aging• CSMA/CD ProtocolIndustrial Case / Installation• IP30 metal case / protection• DIN rail and wall mount design• 12 to 48V DC, redundant power with polarity reverse protection and connective removable?terminal block for master and slave power• Supports EFT protection 6KV DC for power line• Supports 6KV DC Ethernet ESD protection• -40 to 75 degrees C wide operating temperature Hardware SpecificationsCopper InterfacePorts4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-XCable10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)Optical InterfacePort2 x 100Base-FXCableISW-621T: 50/125μm / 62.5/125μm fiberISW-621TS15: 9/125μm fiberModeISW-621T: Multi-modeISW-621TS15: Single-modeDistanceISW-621T: 2kmISW-621TS15: 15kmWavelengthISW-621T: 1310nmISW-621TS15: 1310nmLaunch Power ISW-621T: Max. -14dBm, Min. -20dBmISW-621TS15: Max. 0dBm, Min. -20dBmReceive SensitivityISW-621T: -32dBmISW-621TS15: -32dBmMax. Input PowerISW-621T: -14...
