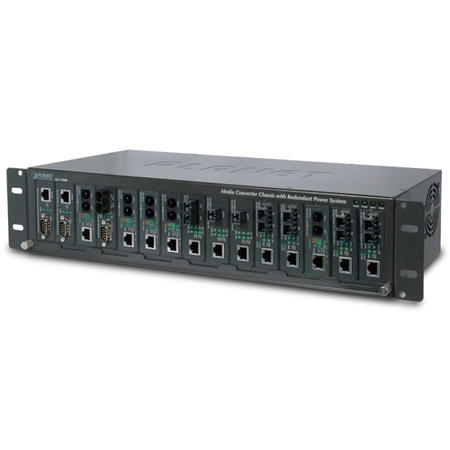

Planet PL-MC-1500R 19 inch 15 Slot Mediz Converter Chassis

Ürün Açıklaması

19-inch 15-Slot Media Converter Chassis (AC Power) Hardware?–High quality 19" Rack-mountable chassis installation?–Supplies the converters modules to be plugged and played?–Supports up to fifteen hot-swappable media converters?–Two fans built-in for hardware cooling?–Reduces the effort of converter maintenance and management, diagnose the status at one time• Power System?–Bay power isolation to ensure each bay is electrically isolated from each other?–Power protection: protection from over voltage, over current and short circuit• Compatibility?–Supports PLANET Fast Ethernet, Gigabit Ethernet Media Converter series: FT-80x / FT-90x and GT-70x / GT-80x?–Supports VDSL2 Media Converter: VC-201A / VC-231?–Supports Serial over Ethernet Converter: ICS-10x series Hardware SpecificationsDimensions (W x D x H)438 x 200 x 103 mm, 2.4U highSlot15 open slots (Slot Dimensions (W x D x H) 27 x 95 x 71 mm,)LEDPower 1, Power2, Fan1, Fan2Fan2 x FanWeight4.3kgPower Requirements100~240V AC, 3.3A, 50-60HzPower OutputEach slot 5V DC 1APower Consumption10 watts / 34.1BTU (System only)80 watts / 272BTU (Full loading)Operating Environment0~50 degrees C, 5%~90%RHStorage Environment-20~70 degrees C, 5%~90%RHEmissionFCC Class A, CE mark
