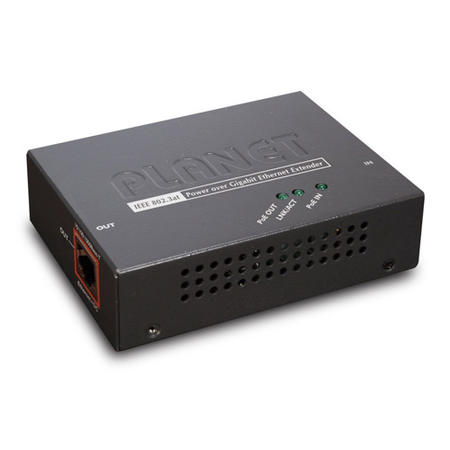

Planet PL-POE-E201 IEEE 802.3at Power over Gigabit Ethernet Extender

Ürün Açıklaması

EEE 802.3at Power over Gigabit Ethernet Extender IEEE 802.3at / 802.3af Power over Ethernet compliant• Complies with IEEE 802.3 / 802.3u / 802.3ab 10/100/1000Base-T• Extends the range of PoE to more than 100 meters (328ft.)• Automatically detects and protects PoE equipment from being damaged by incorrect installation• Multiple units, daisy-chain installation support• Forwards both Ethernet data and PoE power to the remote device• No external power cable installation required• Compact size, wall-mountable design• Plug and Play InterfacesLAN IN1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ-45 connectorLAN OUT1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ-45 connectorPower over EthernetPoE StandardIEEE 802.3af (Power over Ethernet)IEEE 802.3at (High Power over Ethernet)PoE Power Supply TypeMid-Span / Type BPoE Power Output52V DC, 510mA, Max. 26 wattsPower Pin Assignment4/5(+), 7/8(-)Maximum Distance4 units, daisy-chain installation with 500m supportHardware SpecificationsData Rate10/100/1000MbpsSwitch ArchitectureStore-and-ForwardSwitch Throughput10Mbps:14880pps@64Bytes100Mbps:148810pps@64Bytes1000Mbps:1488000pps@64BytesMaximum Frame Size1552BytesFlow ControlBack pressure for half-duplexIEEE 802.3x pause frame for full-duplexLED Indicators??? 1 x PoE IN (Green)??? 1 x LAN Data (Green)??? 1 x PoE OUT (Green)ProtectionESD (Ethernet): 2KV (TBD)Surge (EFT for power) : 2KV (TBD)Dimensions (W x D x H)94 x 70 x 26 mmWeight197gPower RequirementsIEEE 802.3at compliant with voltage within 52V-56V DCPower Consumption3.2 watts (system maximum)MechanicalMetal / Wall mountableNetwork Cable10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft)100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)EIA/TIA- 568 100-ohm STP (100m, 328ft)Standards ConformanceRegulation ComplianceFCC Part 15 Class A, CEStandard Complia...
