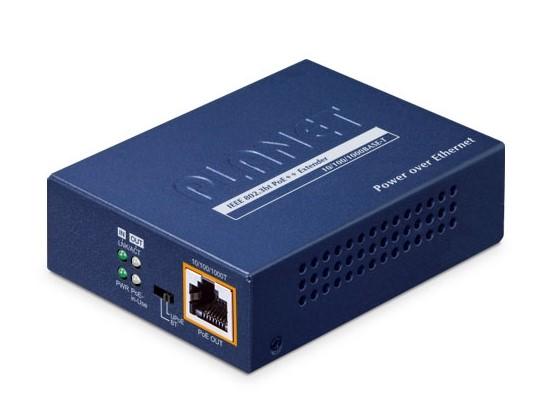

Planet PL-POE-E301 1 Port 802.3bt to 1 Port 802.3bt Gigabit PoE+ Extender

Ürün Açıklaması

Planet PL-POE-E301 1 Port 802.3bt to 1 Port 802.3bt Gigabit PoE+ Extender Hardware SpecificationsPoE IN1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE “Data + DC?inauto MDI/MDI-X, auto-negotiation RJ45 connectorPoE OUT1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE ?Data + DC” outauto MDI/MDI-X, auto-negotiation RJ45 connectorDIP SwitchPoE power feeding options (BT/UPOE) selectionDimensions (W x D x H)94 x 70 x 26 mmWeight258gPower RequirementsIEEE 802.3bt PoE++ compliant with voltage within 52V-56V DCIEEE 802.3af PoE compliant with voltage within 44V-56V DCPower Consumption2.4 watts (system maximum) /PoE Output at maximum 60 wattsEnclosureMetalInstallationWall or DIN-rail mountingProtectionESD (Ethernet): 2KVSurge (EFT for power) : 2KVLED Indicators?1 x PWR (Green)?1 x PoE IN Data (Green)?1 x PoE OUT Data (Green)?1 x PoE Out : PoE-in-use (Green: BT PD; Amber UPOE PD)Network Cable10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft)100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft)1000BASE-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft)EIA/TIA- 568 100-ohm STP (100m, 328ft)Switching SpecificationsData Rate10/100/1000MbpsSwitch ArchitectureStore-and-ForwardSwitch Throughput10Mbps:14880pps@64Bytes100Mbps:148810pps@64Bytes1000Mbps:1488000pps@64Bytes
