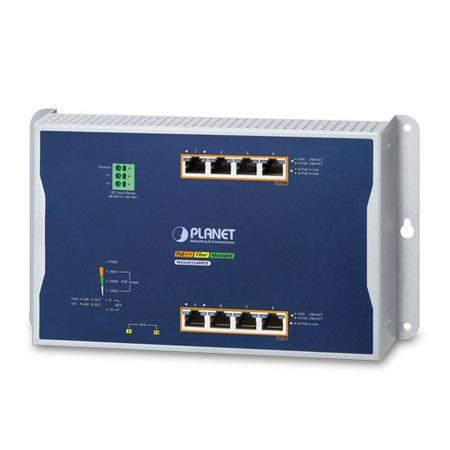

Planet PL-WGS-4215-8HP2S 8 Port Gigabit 2 Port SFP 360W PoE Yönetilebilir Endütriyel Switch

Ürün Açıklaması

Planet PL-WGS-4215-8HP2S 8 Port Gigabit 2 Ğport SFP 360W PoE Yönetilebilir Endütriyel Switch Hardware SpecificationsCopper Ports8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X portsSFP Ports2 x 100/1000BASE-X SFP interfacesSupports 100/1000Mbps dual mode and DDMPoE Injector Port4 ports with 802.3b PoE++ injector function with Port-1 to Port-44 ports with 802.3at/af PoE+ injector function with Port-5 to Port-8Reset Button< 5 sec: System reboot> 5 sec: Factory defaultDimensions (W x D x H)245 x 140 x 36 mmWeight853 gEnclosureMetalPower Requirements48~56V DC, 8 A (max.)Power Consumption/ DissipationSystem on: Max. 4 watts/ 13.6 BTUFull loading with PoE function: Max. 382 watts/ 1303.4 BTUESD ProtectionContact Discharge 6KV DCAir Discharge 8KV DCLEDSystem:PWR x1 (Green)Copper Interfaces (Port 1 to Port 8):1000 LNK/ACT (Green)10/100 LNK/ACT (Orange)PoE Interfaces (Port 1 to Port 8):bt PoE (Green)af/at PoE (Orange)SFP Interface (Port 9 to Port 10):1000 LNK/ACT (Green)100 LNK/ACT (Orange)Switching SpecificationsSwitch ArchitectureStore-and-ForwardSwitch Fabric20Gbps/non-blockingSwitch Throughput@64Bytes14.88MppsAddress Table8K entriesShared Data Buffer4.1 megabitsFlow ControlIEEE 802.3x pause frame for full duplexBack pressure for half duplexJumbo Frame10K bytesPower over EthernetPoE StandardIEEE 802.3bt PoE++ standard type 4 PSEIEEE 802.3af PoE+ PSEBackward compatible with IEEE 802.3afPoE PSEPoE Power Supply Type802.3bt / UPoE / End-span / Mid-span / ForcePoE Power OutputPer port 54V DC?802.3bt Type-4 mode, Port-1 to Port-4: maximum 90 watts?UPoE mode, Port-1 to Port-4: maximum 95 watts?End-span mode: maximum 36 watts?Mid-span mode: maximum 36 watts?Force mode: maximum 60 wattsPower Pin Assignment802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)End-span: 1/2(-), 3/6(+)Mid-span: 4/5(+), 7/8(-)PoE Power Budgetup to 360 wattLayer 2 FunctionsPort MirroringTX/RX/bothMany-to-1 monitorUp to 4 sessionsVLANIEEE 802.1Q tagged VLANIEEE 802.1ad Q-in-Q tunnelingVoi...
