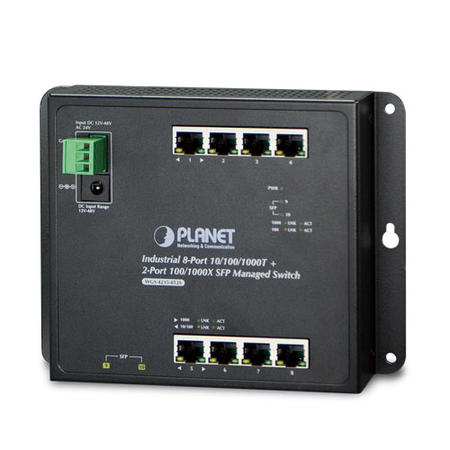

Planet PL-WGS-4215-8T2S 8 Port 10/100/1000T 2 Port 1000X SFP L2 L4 Endüstriyel Duvar Tipi Switch

Ürün Açıklaması

Endüstriyel Duvar Tip Yönetilebilir Switch (Industrial Flat-type Managed Switch)8 x 10/100/1000T2 x 100/1000X SFPL2/L4IP30, -40~75 derece C Physical Port8-port 10/100/1000BASE-T Gigabit RJ45 copper2 100/1000BASE-X mini-GBIC/SFP slotsIndustrial Case / Installation- 12V~48V DC/24V AC terminal block/12V~48V DC jack power input- 12V~48V DC input range for booting with polarity reverse protect functionCompact size, wall-mounted, magnetic wall mount and DIN-rail designIP30 metal case protectionSupports -40 to 75 degrees C operating temperatureSupports EFT protection of 6KV DC for power lineSupports ESD 6KV DC Ethernet protectionRedundant power designSwitchingHardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation8K MAC address table size9K iumbo frameAutomatic address learning and address agingSupports CSMA/CD protocolLayer 2 Features- Provides bridging (VLAN Q-in-Q, IEEE 802.1ad) support- Protocol VLAN- Voice VLAN- Private VLAN (Protected port)- Management VLAN- GVRP- STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU Forwarding- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 4 trunk groups, up to 8 ports per trunk groupSupports VLAN- IEEE 802.1Q tagged VLANSupports Spanning Tree ProtocolSupports Link AggregationProvides port mirror (many-to-1)Loop protection to avoid broadcast loopsQuality of Service- IEEE 802.1p CoS- TOS/DSCP/IP precedence of IPv4/IPv6 packetsIngress/Egress Rate Limit per port bandwidth controlTraffic classificationStrict priority and Weighted Round Robin (WRR) CoS policiesMulticastSupports IPv4 IGMP snooping v2 and v3Supports IPv6 MLD snooping v1, v2IGMP querier mode...
