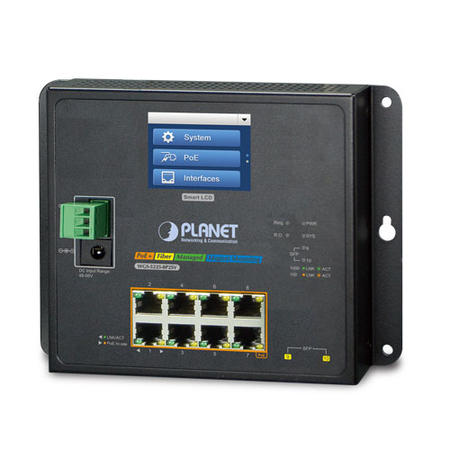

Planet PL-WGS-5225-8P2SV 8 Port Gigabit PoE 2 Port SFP 240W L2+ Endüstriyel Yönetilebilir PoE Switch

Ürün Açıklaması

Endüstriyel Duvar Tip L2+ Yönetilebilir Switch (Industrial Wall-mount L2+ Managed Switch)8-Port 10/100/1000T IEEE 802.3at/af PoE+ Injector Port (Per port 30.8 watt) (PoE Güç Bütçesi maks. 240 Watt)2-Port 1000Base-SX/LX/BX SFP/mini-GBIC yuva (Port-9 ve Port-10), 100Base-FX SFP uyumluL2+L3 Static RoutingE.R.P.S. RingLCD Dokunmatik Ekran (LCD Touch Screen)PTP/Modbus TCPONVIF TespitiKonsol portIP30, -40~75 Derece C Physical Port8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detectionPower over EthernetComplies with IEEE 802.3at Power over Ethernet Plus/end-span PSEUp to 8 IEEE 802.3af/802.3at devices poweredSupports PoE power up to 36 watts for each PoE portAuto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100mPoE management features- Total PoE power budget control- Per port PoE function enable/disable- PoE admin-mode control- PoE port power feeding priority- Per PoE port power limit- PD classification detectionIntelligent PoE features- Temperature threshold control- PoE usage threshold control- PD alive check- PoE scheduleIndustrial Case and InstallationCompact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail designIP30 metal caseSupports -20 to 70 degrees C operating temperatureSupports ESD 6KV DC Ethernet protectionDual power input design- 48V~56V DC wide power input with polarity reverse protect function- 3-pin terminal block or DC jack connectorLayer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthStorm Control support-Broadcast/Multicast/UnicastSupports VLAN- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private...
