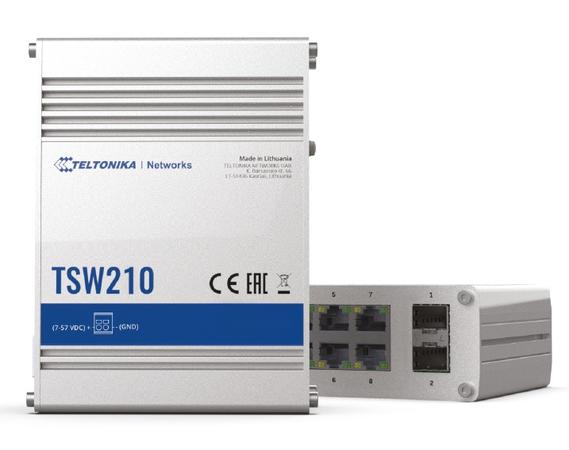

Teltonika TE-TSW210 8 Port Gigabit 2 Port SFP Unmanaged Industriyal Switch

Ürün Açıklaması

Teltonika TE-TSW210 8 Port Gigabit 2 Port SFP Unmanaged Industriyal Switch INTERFACESEthernet8 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover2 x SFP portsPERFORMANCE SPECIFICATIONSBandwidth (Non-blocking)20 GbpsPacket buffer128 KBMAC address table size2K entriesJumbo frame support9216 bytesPOWERConnector2 pin industrial DC power socketInput voltage range7-57 VDCPower consumptionIdle: ~1.03 W / Max: 3.71 WPHYSICAL INTERFACES (PORTS, LEDS)Ethernet8 x RJ45 ports, 10/100/1000 MbpsFiber2 x SFP portsStatus LED’s1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’sPower1 x 2 pin industrial DC power socketGround1 x Grounding screwPHYSICAL SPECIFICATIONCasing materialFull aluminum housingDimensions (W x H x D)132 x 44.2 x 95.1 mmWeight500 gMountingDIN rail or wall mounting (additional kit needed), flat surface placementOPERATING ENVIRONMENTOperating temperature-40 °C to +75 °COperating humidity10 % to 90 % non condensingIngress Protection RatingIP30
