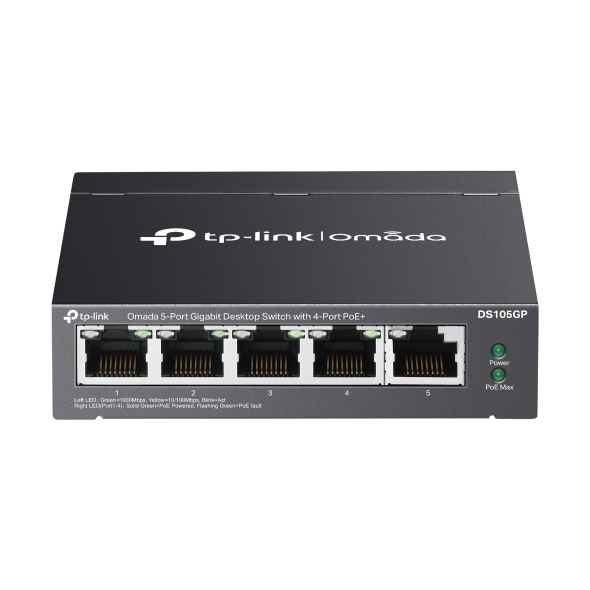

Tp-Link Omada DS105GP 5 Port Gigabit PoE+ Masaüstü PoE+ Switch

Ürün Açıklaması

Tp-Link Omada DS105GP 5 Port Gigabit PoE+ Masaüstü PoE+ SwitchDONANIM ÖZELLİKLERİArabirim• 5× 10/100/1000Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIXAğ Medyası• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)Fan SayısıFanlessHarici Güç KaynağıExternal Power Adapter (Output: 53.5 VDC / 1.31 A)Paket Yönlendirme Hızı7.44 MppsPoE Portları (RJ45)• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 65 WMAC Adres Tablosu2KJumbo Frame16 KBSwitching Kapasitesi10 GbpsBoyutlar ( W X D X H )3.9×3.9×1.0 in (99.8×98×25 mm)Maks. Güç Tüketimi• 3.44 W (220/50 Hz. no PD connected)• 74.49 W (220/50 Hz. with 65 W PD connected)Max Heat Dissipation• 11.73 BTU/h (no PD connected)• 254.01 BTU/h (with 65 W PD connected)YAZILIM ÖZELLİKLERİGelişmiş Özellikler• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning And Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-4)Transfer MetoduStore-And-ForwardDİĞERLERİSertifikaFCC, CE, RoHSPaket İçeriği• DS105GP• Power Adapter• Installation GuideOrtam• Operating Temperature: 0–40 ? (32–104 ?);• Storage Temperature: -40–70 ? (-40–158 ?)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
