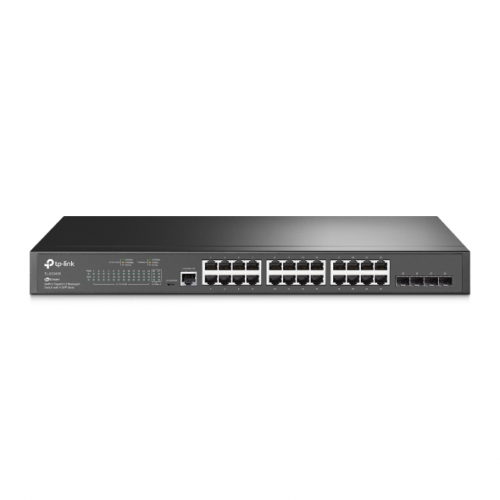

Tp-Link Omada SG3428 24 Port Gigabit 4 Port SFP Yönetilebilir Metal Kasa Ethernet Switch
Ürün Açıklaması
Tp-Link Omada SG3428 24 Port Gigabit 4 Port SFP Yönetilebilir Metal Kasa Ethernet Switch DONANIM ÖZELLİKLERİArabirim• 24× 10/100/1000 Mbps RJ45 Ports• 4× Gigabit SFP Slots• 1× RJ45 Console Port• 1× Micro-USB Console PortFan SayısıFanlessGüç Kaynağı100-240 V AC~50/60 HzBoyutlar ( W X D X H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)MontajRack MountableMaks. Güç Tüketimi19.22 W (110 V/60 Hz)Max Heat Dissipation65.58 BTU/h (110 V/60 Hz)PERFORMANSAnahtarlama Kapasitesi56 GbpsPaket Yönlendirme Hızı41.66 MppsMAC Adres Tablosu8KJumbo Frame9 KBYAZILIM ÖZELLİKLERİQuality of Service• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling- SP (Strict Priority)- WRR (Weighted Round Robin)- SP+WRR• Bandwidth Control- Port/Flow based Rating Limiting• Smoother Performance• Action for Flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS RemarkL2 ve L2+ Özellikleri• Link Aggregation- Static link aggregation- 802.3ad LACP- Up to 8 aggregation groups and up to 8 ports per group• Spanning Tree Protocol- 802.1d STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect• Loopback Detection- Port-based- VLAN based• Flow Control- 802.3x Flow Control- HOL Blocking Prevention• Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Tx/Rx/BothL2 Multicast• Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- IGMP Authentication• IGMP Authentication• MVR• MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config- Limited IP Multicast• Multicast Filtering: 256 profiles and 16 entries per profileVLAN• VLAN Group- Max 4K VLAN Groups• 802.1q Tagged VLAN• MAC VLAN: 12 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• GVRP• VLAN VPN (QinQ)- Port-Based QinQ- Selective QinQ• Voice VLANErişim Kontrol Listesi• Time-based ACL• MAC ACL- Source MAC- Destination MAC- VLAN ID- User Priority- Ether Type•...
