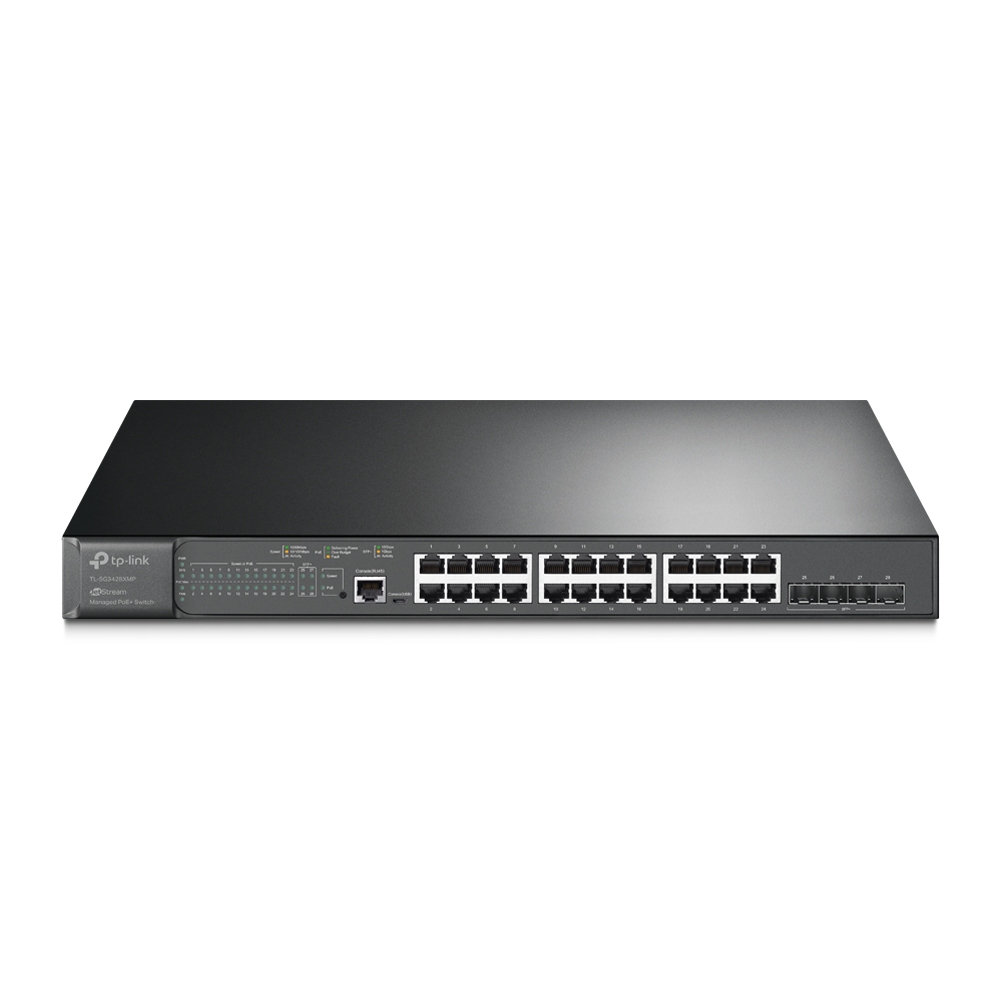

Tp-Link SG3428XMPP Omada 24 Port Gigabit 4 Port SFP+ L2 Yönetilebilir PoE Switch
Ürün Açıklaması
Tp-Link SG3428XMPP Omada 24 Port Gigabit 4 Port SFP+ L2 Yönetilebilir PoE Switch DONANIM ÖZELLİKLERİArabirim• 24× 10/100/1000 Mbps RJ45 Ports• 4× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console PortFan Sayısı2Güç Kaynağı100-240 V AC~50/60 HzPoE+ Portları (RJ45)• Standard: 802.3at/af compliant• PoE+ Ports: 24 Ports, up to 30 W per port• Power Budget: 384 WBoyutlar ( W X D X H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)MontajRack MountableMaks. Güç Tüketimi34.4 W (110V/60Hz) ( no PD device connected)465.8 W (110V/60Hz) ( with 384 W PD device connected)Max Heat Dissipation117.38 BTU/h (110 V/60 Hz) (no PD device connected)1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)PERFORMANSAnahtarlama Kapasitesi128 GbpsPaket Yönlendirme Hızı95.23 MppsMAC Adres Tablosu16 KPaket Buffer Belleği12 MbitJumbo Frame9 KBYAZILIM ÖZELLİKLERİQuality of Service• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling- SP (Strict Priority)- WRR (Weighted Round Robin)- SP+WRR• Bandwidth Control- Port/Flow based Rating Limiting• Smoother Performance• Action for Flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS RemarkL3 Özellikleri• 128 IPv4/IPv6 Interfaces• Static Routing- 48 static routes• Static ARP- 128 Static Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 RelayL2 ve L2+ Özellikleri• Link Aggregation- static link aggregation- 802.3ad LACP- Up to 8 aggregation groups, containing 8 ports per group• Spanning Tree Protocol- 802.1d STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter, Root Protect• Loopback Detection- Port based- VLAN based• Flow Control- 802.3x Flow Control- HOL Blocking Prevention• Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Tx/Rx/BothL2 Multicast• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- IGMP Authentication• IGMP Authentication• MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD S...
