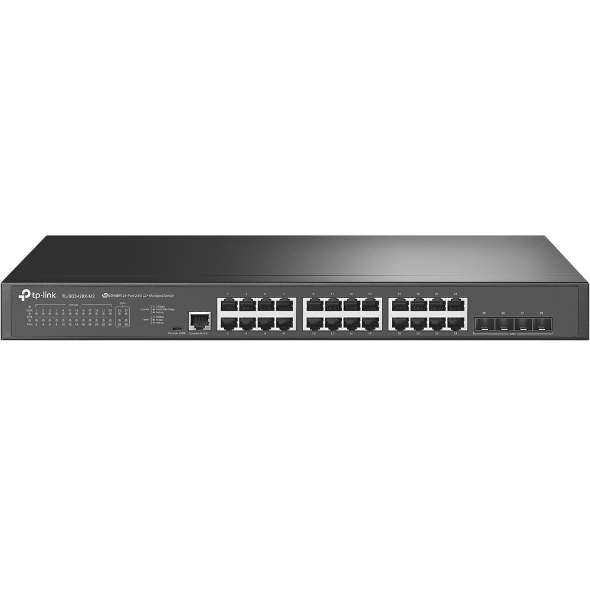

Tp-Link TL-SG3428X-M2 24 Port 2.5Gbe 4 Port SFP L2 Yönetilebilir Ethernet Switch

Ürün Açıklaması

Tp-Link TL-SG3428X-M2 24 Port Gigabit 4 Port SFP L2 Yönetilebilir Ethernet Switch HARDWARE FEATURESInterface• 24× 2.5 Gbps RJ45 Ports• 4× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console PortFan Quantity1Power Supply100-240 V AC~50/60 HzDimensions ( W x D x H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)MountingRack MountableMax Power Consumption45.1 W (110V/60Hz)Max Heat Dissipation154.38 BTU/h (110 V/60 Hz)PERFORMANCESwitching Capacity200 GbpsPacket Forwarding Rate148.80 MppsMAC Address Table32 KPacket Buffer Memory16 MbitJumbo Frame9 KBSOFTWARE FEATURESQuality of Service• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling- SP (Strict Priority)- WRR (Weighted Round Robin)- SP+WRR• Bandwidth Control- Port/Flow based Rating Limiting• Smoother Performance• Action for Flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS RemarkL3 Features• 32 IPv4/IPv6 Interfaces• Static Routing- 48 static routes• Static ARP- 128 Static Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 RelayL2 and L2+ Features• Link Aggregation- static link aggregation- 802.3ad LACP- Up to 8 aggregation groups, containing 8 ports per group• Spanning Tree Protocol- 802.1d STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter, Root Protect• Loopback Detection- Port based- VLAN based• Flow Control- 802.3x Flow Control- HOL Blocking Prevention• Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Tx/Rx/BothL2 Multicast• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- IGMP Authentication• IGMP Authentication• MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config- Limited IP Multicast• MVR• Multicast Filtering: 256 profiles and 16 entries per profileAdvanced Features• Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Confi...
