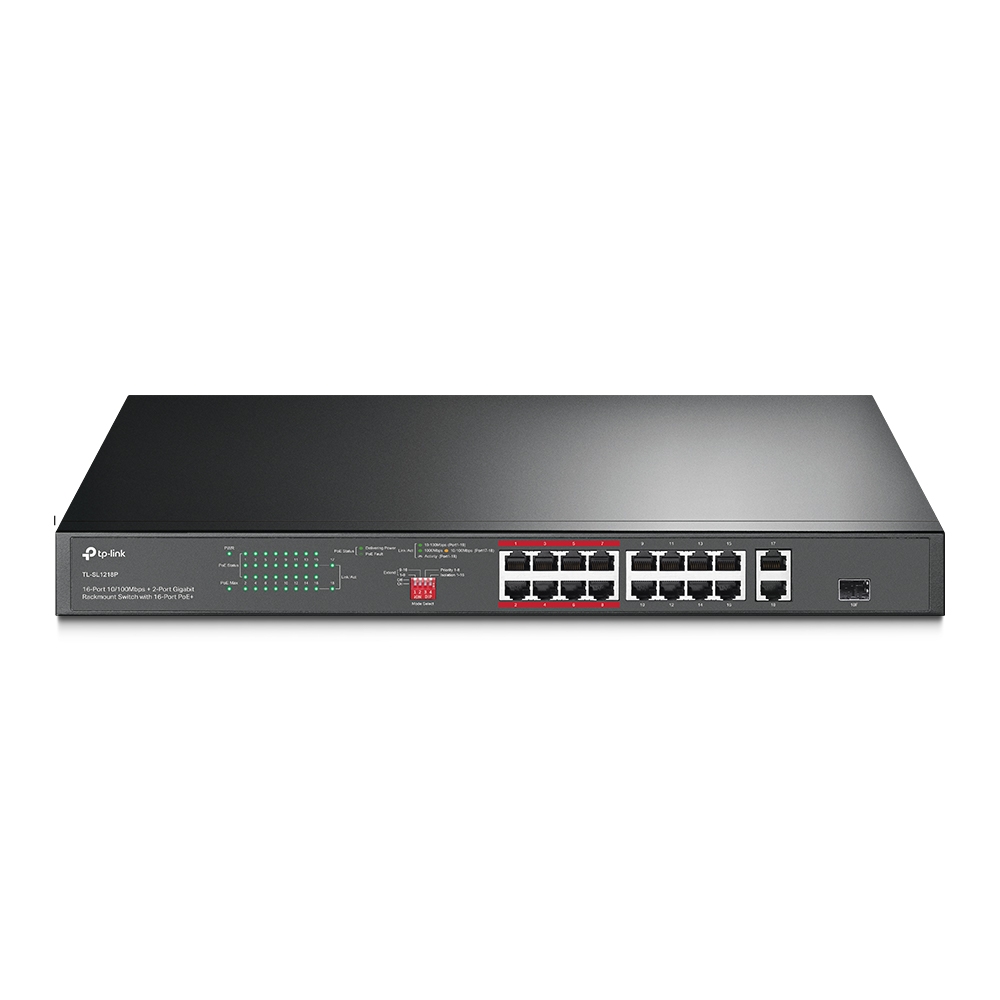

Tp-Link TL-SL1218P JetStream 16 Port 10/100Mbps PoE+ 150W 2 Port Ethernet RackMount PoE+ Switch

Ürün Açıklaması

TL-SL1218P16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.Isolation Mode allows one-click client traffic separation for higher security and performance.Easy to use, with no configuration and installation needed.DONANIM ÖZELLİKLERİArabirim• 16× PoE+ 10/100 Mbps RJ45 Ports• 2× 10/100/1000 Mbps RJ45 Ports• 1× Combo Gigabit SFP SlotAğ Medyası• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-X MMF, SMFFan Sayısı2 FansFiziksel Güvenlik KilidiYesGüç Kaynağı100–240V AC, 50/60 HzPoE+ Portları (RJ45)• Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–16• PoE Power Budget: 150 WBoyutlar ( W X D X H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)Maks. Güç Tüketimi• 12.71 W (220/50Hz. no PD connected)• 172.8 W (220/50Hz. with 150 W PD connected)Max Heat Dissipation• 43.34 BTU/h (no PD connected)• 589.25 BTU/h (with 150 W PD connected)PERFORMANSAnahtarlama Kapasitesi7.2 GbpsPaket Yönlendirme Hızı5.36 MppsMAC Adres Tablosu8KJumbo Frame10 KBYAZILIM ÖZELLİKLERİGelişmiş Özellikler• Compatible With IEEE 802.3at/af Compliant PDs• Extend Mode (Up to 250m PoE power supply and data transmission)• Priority Mode• Isolation Mode• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Controlİletim MetoduStore-And-ForwardDİĞERLERİSertifikaCE, FCC, RoHSPaket İçeriği• TL-SL1218P• Power Cable• Installation Guide• Two mounting brackets and the fittingsOrtam• Operating...
