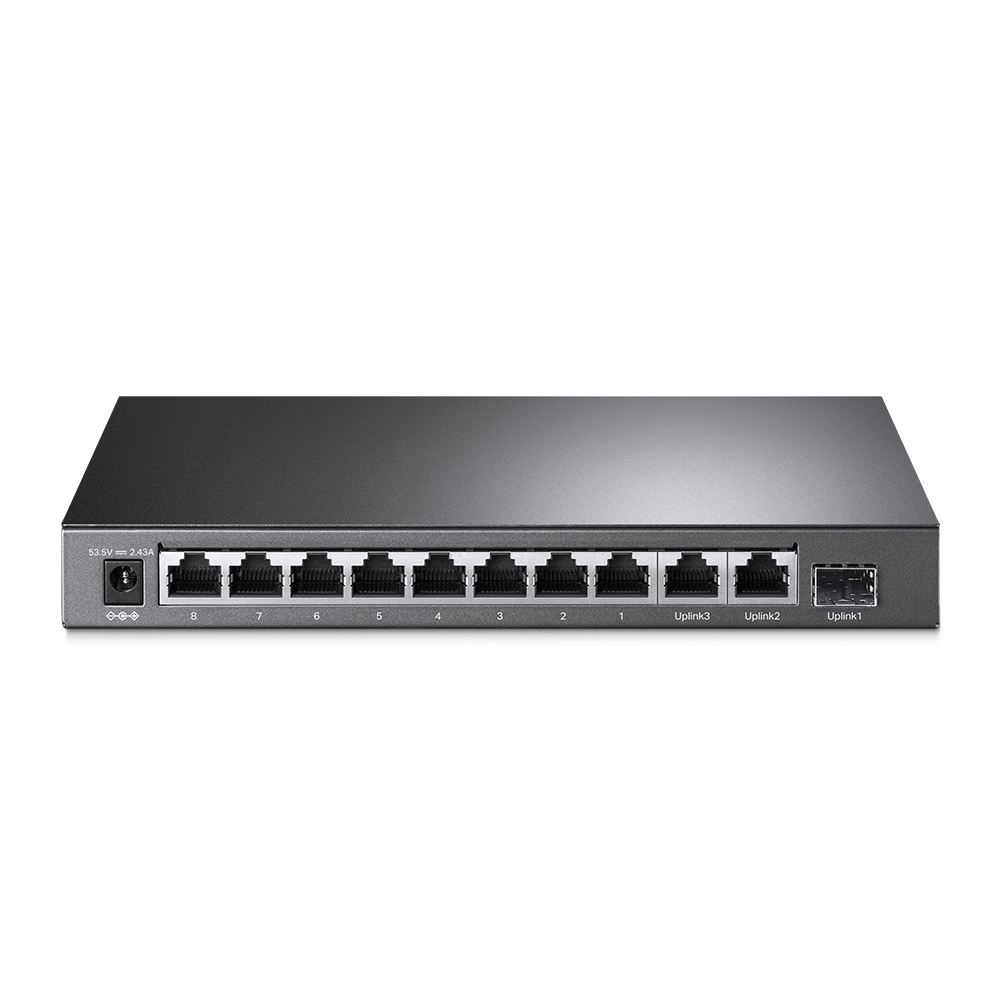

Tp-Link TL-SL1311MP 8 Port 10/100 2 Port Gigabit 1 Port SFP PoE Switch

Ürün Açıklaması

Tp-Link TL-SL1311MP 8 Port 10/100 2 Port Gigabit 1 Port SFP PoE Switch TL-SL1311MP8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port8× PoE+ ports transfer data and power on individual cablesWorks with IEEE 802.3af/at compliant PDsSupports PoE Power up to 30 W for each PoE portSupports PoE Power up to 124 W for 8 PoE ports*Up to 250 m data and power transmitting range under Extend Mode**Isolation Mode allows one-click client traffic separation for higher security and performancePoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devicesFanless Design reduces power consumption and works silently in its locationPlug and play with no configuration required DONANIM ÖZELLİKLERİArabirim• 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port• AUTO Negotiation• AUTO MDI/MDIXAğ Medyası• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)Fan SayısıFanlessFiziksel Güvenlik KilidiYesHarici Güç KaynağıExternal Power Adapter (Output: 53.5VDC / 2.43A)Paket Yönlendirme Hızı5.6544 MppsPoE Portları (RJ45)• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 124 WMAC Adres Tablosu2KJumbo Frame16 KBSwitching Kapasitesi7.6 GbpsBoyutlar ( W X D X H )8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)Maks. Güç Tüketimi• 5.95 W (220/50 Hz. no PD connected)• 140.92 W (220/50 Hz. with 124 W PD connected)Max Heat Dissipation• 20.29 BTU/h (no PD connected)• 480.54 BTU/h (220/50 Hz. with 124 W PD connected)YAZILIM ÖZELLİKLERİİletim MetoduStore-And-ForwardGelişmiş Fonksiyonlar• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)•...
