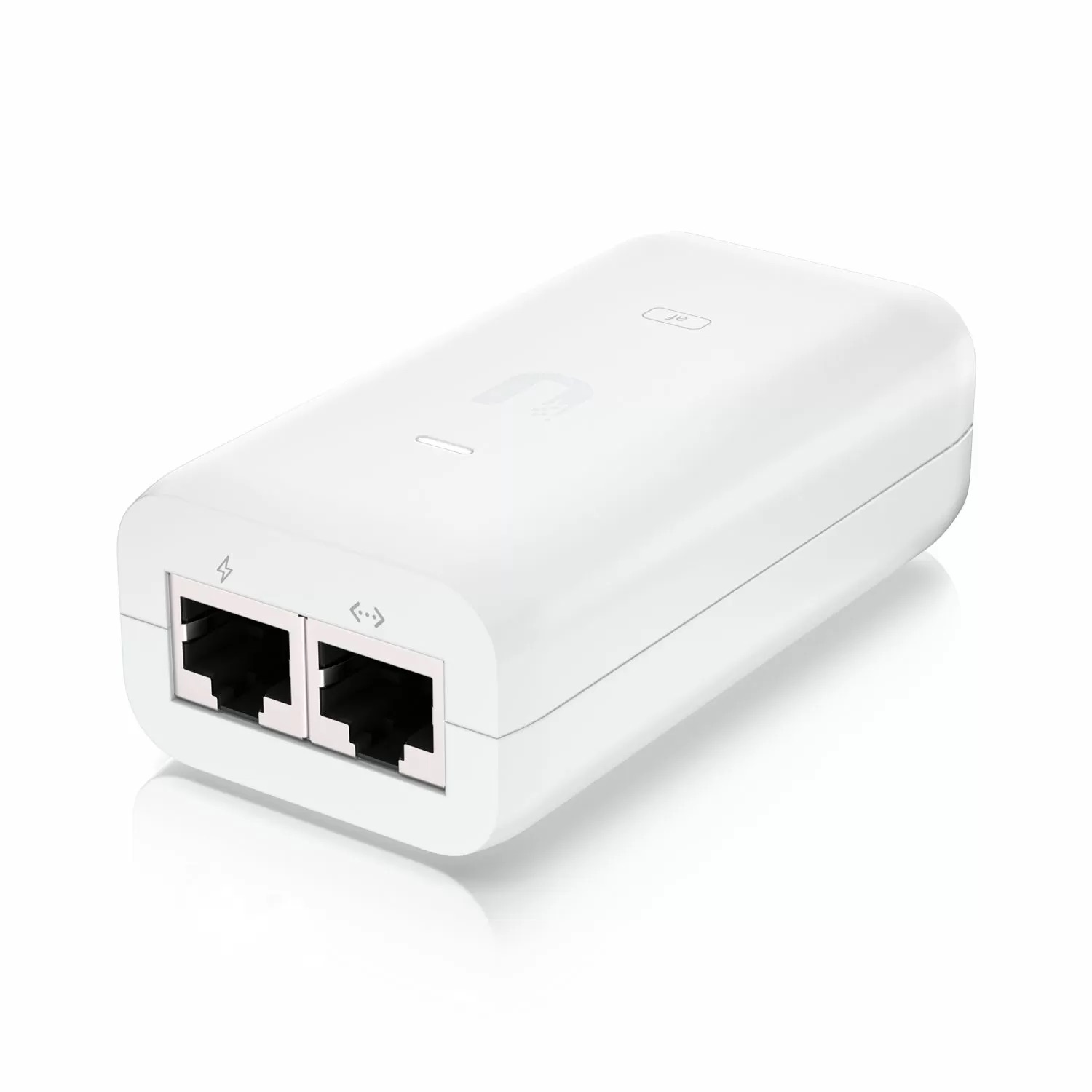

Ubiquiti U-POE-AF 1 Port Gigabit 15W PoE Adaptör

Ürün Açıklaması

Ubiquiti U-POE-AF 1 Port Gigabit 15W PoE Adaptör ModelU-POE-afDimensions86 x 46 x 33 mm (3.39 x 1.81 x 1.30")Weight100 g (3.53 oz)Output voltage48V DC @ 0.32ALAN activity indicatorNoGigabit LAN portYesRemote reset capabilityNoReset ButtonNoRated voltage100—240V AC @ 50/60HzInput current500mA Max.Inrush current<100A Peak at 25°CEfficiency84.25+%Output ripple200mV p-pSwitching frequency65 kHzLine regulation≤ 3%Load regulation≤ 5%2-pair poweringPins 4, 5 (+) and 7, 8 (-)4-pair poweringNoAC connectorIEC-320 C6Data In / PoERJ45 shielded socketSurge protectionDifference and common modeClamping protection11V data, 60V powerMax. surge discharge1500A (8/20 μs) powerPeak pulse current36A (10/1000 μs) dataShunt capacitance<5 pF dataResponse time<1 nsAmbient operating temperature0 to 40° C (32 to 104° F)Storage temperature-30 to 70°C (-22 to 158° F)Ambient operating humidity10 to 95% noncondensingCertificationsCE, FCC, IC, UL
